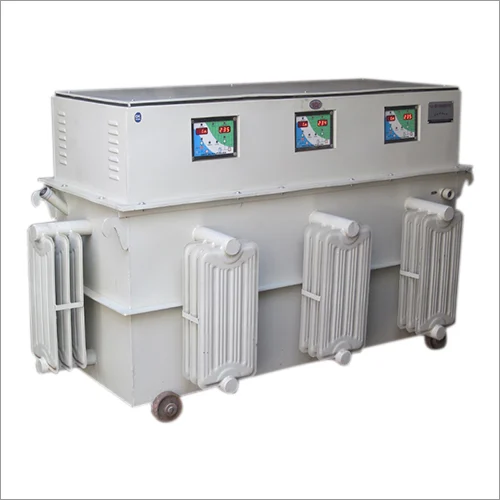

Servo Stabilizers
SALIENT FEATURES OF LAMBENT SERVO STABILIZER
  • Fast corrections rate and very high effciency.
  • Unaffected by load Power Factor
  • Works over wide input frequency range and no waveform distortion
  • Plug –in type glass-epoxy control cards for easy on line serviceability.
  • Specially designed high performance I.C. based control circuit for ultra-high reliability.
  • All components used are of reputed makes conrming to relevant IS/BS standards.
  • Auto/Manual operation facility.
  • Over voltage and under voltage Indicators.
  • Output voltage adjustability provided on panel.
A DVANTAGE OF LAMBENT SERVO STABILIZE
  • Corrects voltage automatically and continuously.
  • Induction motor operates at high efciency when supplied with constant voltage.
  • Protects costly equipment from menace of High / Low Voltage, thus cutting down the maintenance cost.
  • Low Production Losses & better efciency in plant.
  • Increased Productivity.
  • 100 %depreciation as per Income Tax Act.
  • Reduces MDI and saves Power.
  • Reduction in electricity bills up to the level of approximately 15% (This depends on the input
  • variation loading and the number of working hours)
  • Saves on diesel cost, as generation not required running at High / Low input voltage.
  • The average pay back period of servo Controlled Voltage Stabilizer owing to it high energy saving
  • capability is approx. 18 months
FIELD OF APPLICATION
  • Information Technology and call centers.
  • Computer and Micro-Processor Controlled Equipment’s.
  • Sophisticated research instruments used in Scientic, Medical, Agriculture, Educational and other Research Institutions.
  • Offset Printing Presses, Color Scanners, Processors, Phototypesetters, Photographic Equipment’s, Photo Copies and Packaging Industries.
  • Medical Equipment’s, X-Ray Machines, E.C.G Machines / Monitors, MRI, CT Scans etc.
  • Defense Installations, LPTs, HPTs, Broadcasting & Telecommunications.
  • Lifts, Escalators and Elevators
  • Central Air -Conditioning Plants Processing plans, Chemical Industrial, Textile Industries
  • CNC Machines, Laser Machines and Molding Machines etc.
  • Commercial Building and Complexes.
  • Complete Hospital and Nursing Homes.
TECHNICALS PECIFICATIONS

Capacity

1 KVA to 100 KVA (Single Phase) 3 KVA to 1500 KVA (Three Phase)

Input Voltage:

160v - 260 V, 140V - 270V (Single Phase) 300V - 450V, 240V - 270V (Three phase) c order) (Other ranges available on specification

Output Voltage:

220V / 230V / 240V Single Phase (adjustable) 330V / 400V / 415V Three Phase (adjustable)

Regulation:

±1% or better

Supply Frequency:

47 Hz- 53 Hz

Efficiency

:  better than 97%

Effect of Load Power Factor:

Nil

Wave form Distortion:

Nil

Rate of Correction:

Better than 36V / sec. in air cooled models

Better than 20V / sec. in Oil cooled Models

Duty Cycle:

100%continuous

Response Time:

Less than 100 ms.

Cooling :

Air / Oil as per requirement

Over Load Capability:

Upto 200% Momentarily

No Load Losses:

 Less than 0.8% over entire range

Suitability :

Suitable for 3Ph.unbalanced / balanced supply & unbalanced / balanced load

Mounting:

On Wheels

Earthing:

Earthing Terminals Provided.

*All specifications are subject to change due to technology up gradation without notice
